Loading Ramp for Dynomag Bike

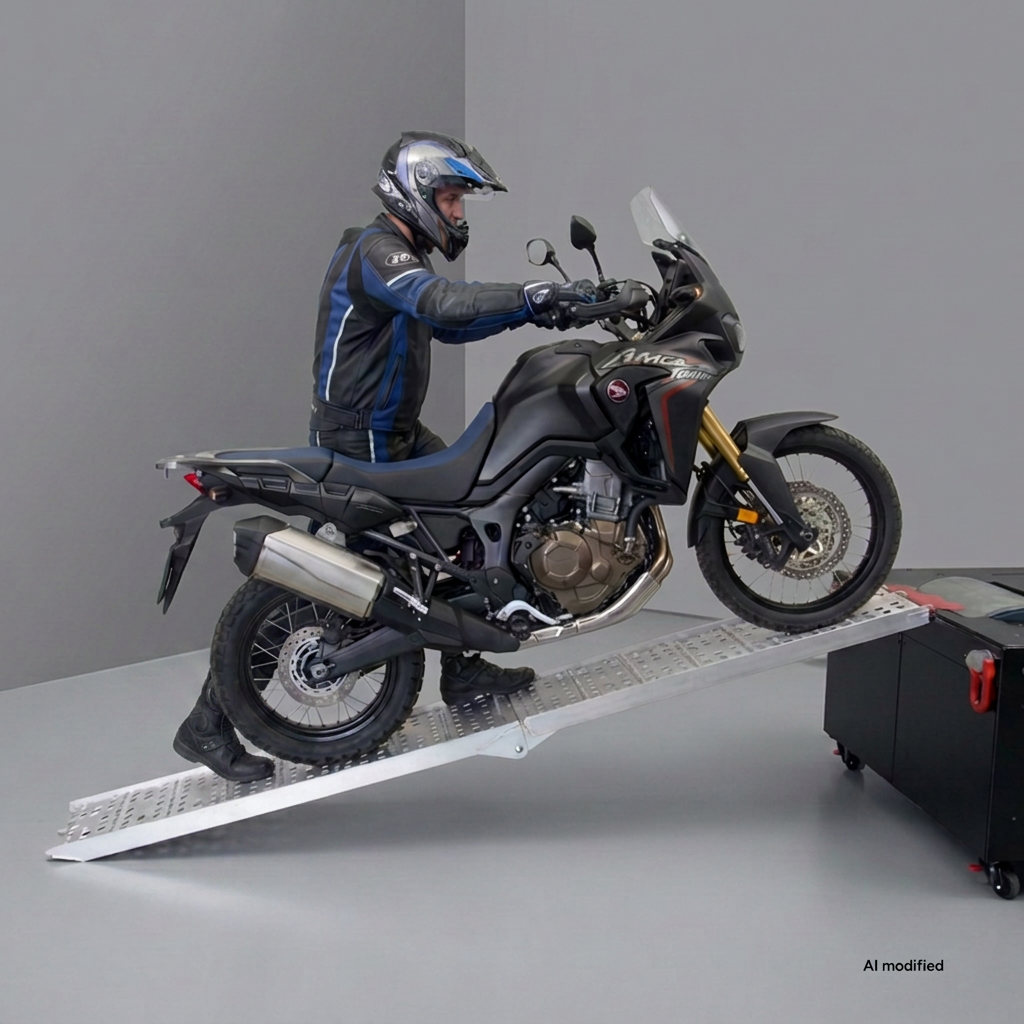

The foldable loading ramp for Dynomag Bike makes motorcycle loading and unloading operations on the test bench easier, ensuring greater stability and safety. Made of high-strength aluminum, it combines lightness, practicality, and a space-saving design thanks to its foldable structure.
Key Features
-
Tailor-made for Dynomag Bike, ideal for loading and unloading motorcycles on the test bench.
-
6061 aluminum structure, corrosion-resistant and with a load capacity of up to 340 kg.
-

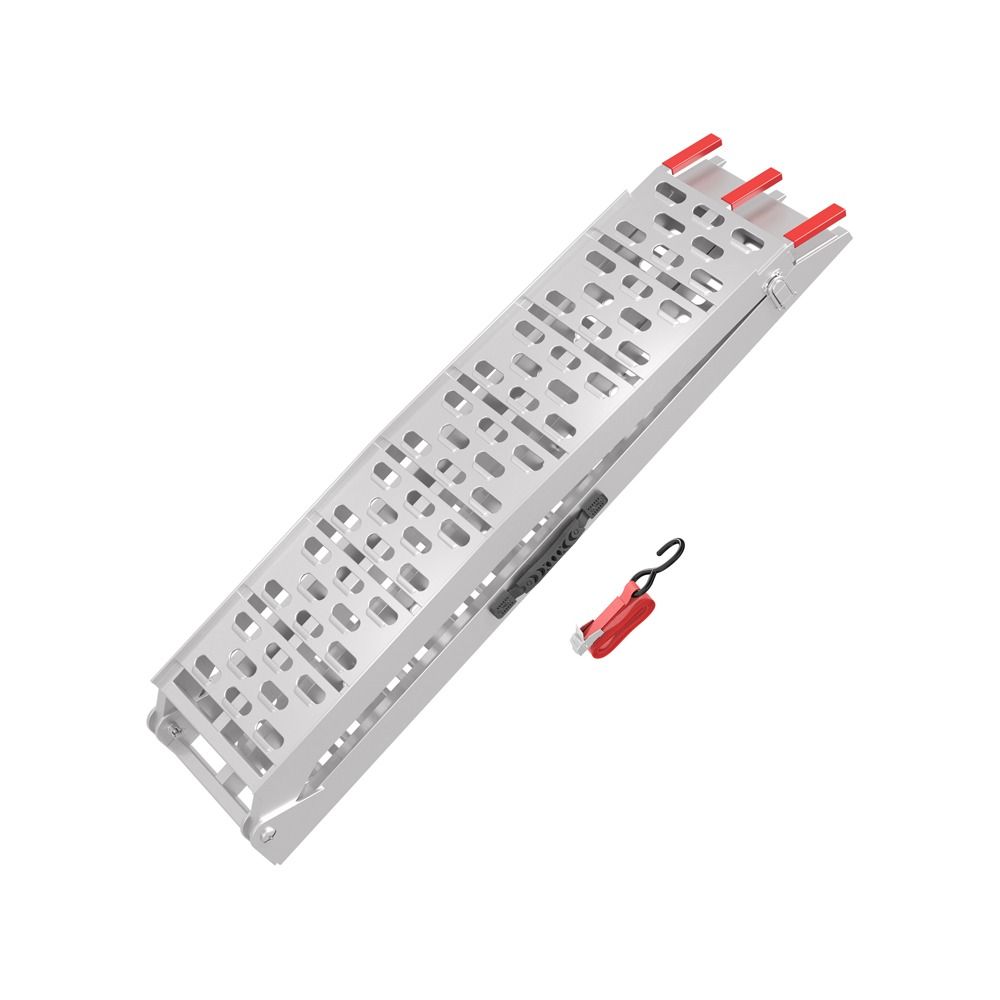

Foldable design with integrated handle for easy transport and compact storage.
-
Anti-slip surface and safety strap included for more stable and safer use.
Description

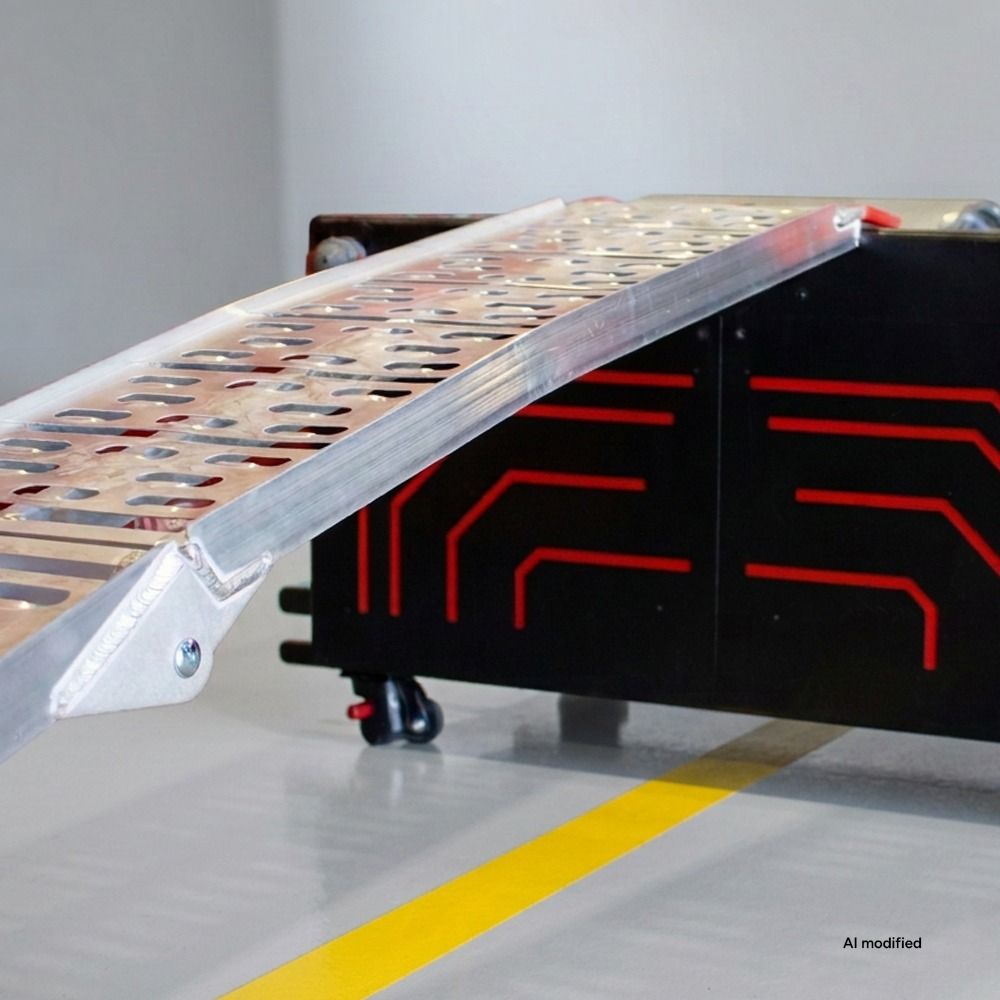

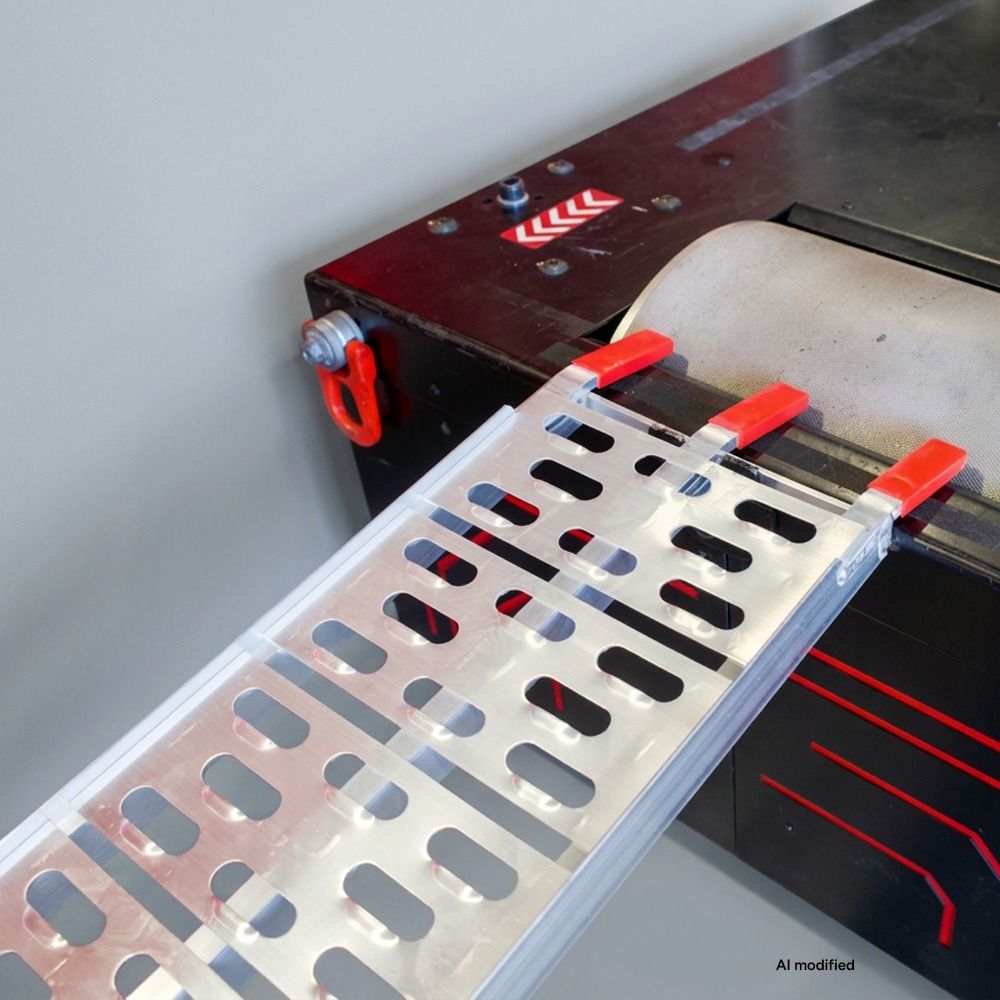

The ramp offers a wide support surface with an anti-slip profile that improves wheel grip when the motorcycle is moved up and down. The hook support system and safety strap allow the ramp to be secured to the test bench, reducing the risk of accidental movement during use.
Built from 6061 aluminum alloy with a thickness of 3 mm, it ensures high strength while maintaining a low weight of approximately 8.5 kg. Once the work is complete, it can be folded in just a few seconds to take up minimal space in the workshop or during transport.
Technical Specifications
|
Feature |
Specification |
|---|---|
|
Type |
Foldable loading ramp |
|
Application |
Dynomag Bike, motorcycles, quads, and light vehicles |
|
Material |
6061 aluminum |
|
Thickness |
3 mm |
|
Length |
2260 mm |
|
Open dimensions |
2260 × 283 × 50 mm |
|
Folded dimensions |
Approx. 1160 × 295 mm |
|
Package dimensions |
117 × 32 × 16 cm |
|
Maximum load capacity |
340 kg |
|
Weight |
Approx. 8.5 kg |
|
Color |
Natural aluminum |
Package Content
| Description | Quantity |
|---|---|
| Foldable loading ramp | 1 |
| Safety strap | 1 |
| Multilingual user manual | 1 |
